Typical application of special optical fiber in smart grid: all-optical fiber current transformer technology

With the improvement of power system voltage level and the increase of transmission capacity, the stable operation of relay protection system becomes more and more important. Electronic current transformer technology has become the main method of current monitoring in high voltage power system. Electronic current transformer technology can be traced back to the magnetic rotation effect and electromagnetic induction discovered by Faraday in the 18th century. Through the special effects of electricity, magnetism and light, it can achieve the purpose of accurate sensing and measurement of high voltage current.

The current mainstream electronic transformers mainly include Rogowski coil current transformers (RCT) based on the principle of electromagnetic induction, magneto-optical glass current transformers (OCT) based on the Faraday magneto-optical effect, and all-optical current transformers (FOCT). For comparison of technical features, see Figure 1 for details.

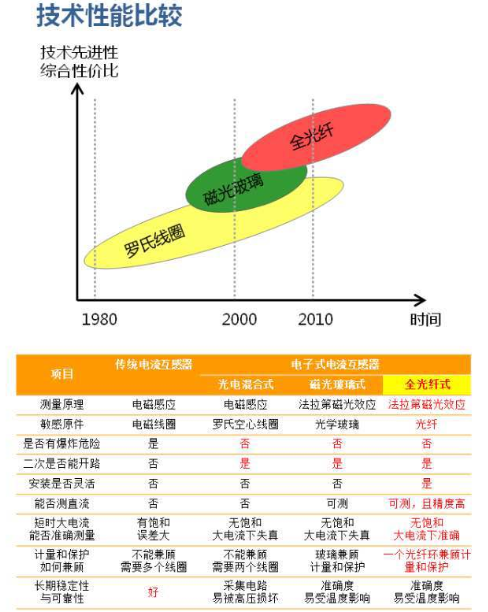

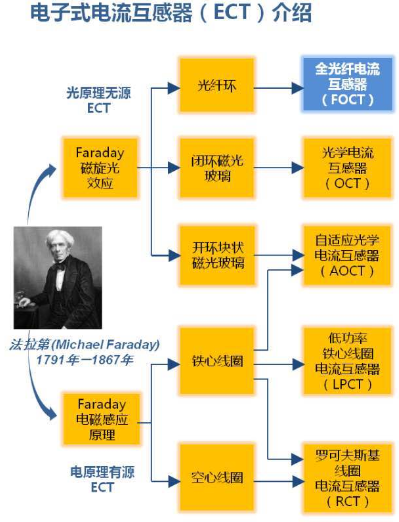

Figure 1 Electronic transformer and comparison of different technologies

Traditional electromagnetic induction current transformers (RCT) have inevitable defects, such as complex insulation structure, high cost, and large size. Compared with it, the all-fiber current transformer has a series of advantages, such as wide measurement range, high sensitivity, small size, and high safety. Therefore, the all-fiber current mutual inductance technology has received great attention from the industry and has developed rapidly in recent years.

The all-fiber current transformer is a device that uses the interaction of electromagnetic field and light polarization to perform current detection. Its theoretical basis is Faraday's magneto-optical effect and Ampere’s loop law. Through the accumulation of practice in recent years, the all-fiber current transformer technology has made great progress in signal processing and demodulation algorithms, and temperature compensation of lithium niobate modulators. As users in the power industry increase their requirements for the optimization of the optical performance of devices in transformers and the maturity of process technologies such as device packaging and preparation, higher requirements are also put forward for sensing fiber optic rings. At present, several domestic enterprises and scientific research units have developed and have the ability to produce FOCT.

FOCT: Closed-loop control and interferometric reciprocity optical path technology route

By optimizing the process of key components such as optical fiber glass slides, polarization-maintaining delay loops, and polarization-maintaining optical fiber sensing cables, excellent control of the main factors of calibration, temperature performance accuracy and stability of the whole machine has been achieved.

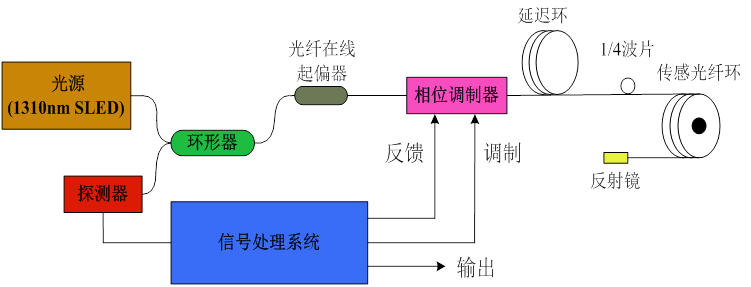

Figure 2 Technical solution of all-optical current transformer

Using closed-loop control and interferometric reciprocity optical path technology, combined with the similar demodulation method of the fiber optic gyro system, the FOCT system is realized.

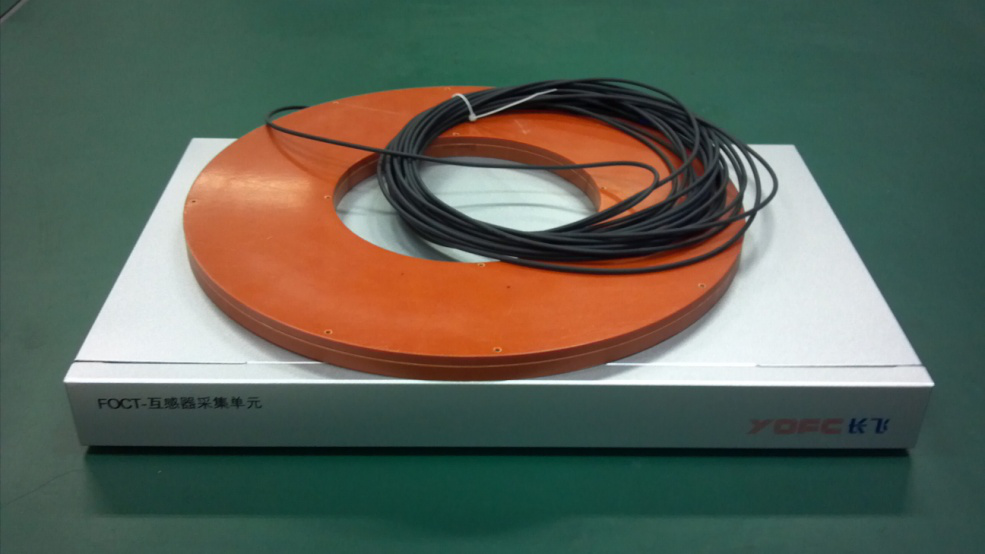

Figure 3 FOCT sensor head and acquisition unit prototype

The 0.2/5P30-level FOCT products used in the power system are composed of two parts: the sensor head, the acquisition unit; and work with the merging unit.

The sensor head is installed on the current bus on the high voltage side of the power grid. It converts the current in the bus into light information related to its size, which is collected and demodulated by the collection unit, and the data is sent to the merging unit in a certain protocol format . The user only needs to read the output data of the merging unit in 100M optical fiber Ethernet mode, or use the FT3 format to output the data output by the message interface in the format specified by IEC61850-9-2 to know the size of the bus current.

Based on the above technical route and product design, FOCT products have the following characteristics:

u Simple insulation structure, anti-electromagnetic interference. The primary side is completely "optically isolated" from the acquisition and processing circuit, achieving high voltage isolation while avoiding electromagnetic interference;

u Using closed-loop control, measurement accuracy is high, dynamic range is large, and response speed is fast;

u No iron core, eliminating magnetic saturation, ferromagnetic resonance and other problems;

u Optical fiber sensitive ring structure and installation method are flexible. It can be installed at zero potential, no movement and thermal stability problems, and no danger of secondary open circuit;

u It can be used for the measurement and protection of high-voltage AC/DC transmission and transformation systems;

u Digital output, adapt to the development trend of digital, microcomputer and automation of electric power metering and protection.

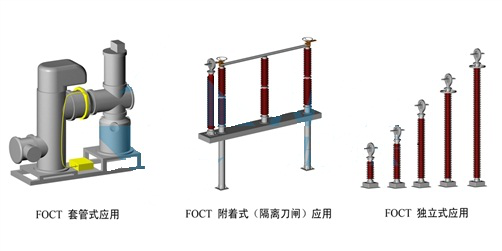

Figure 4 FOCT application scenario

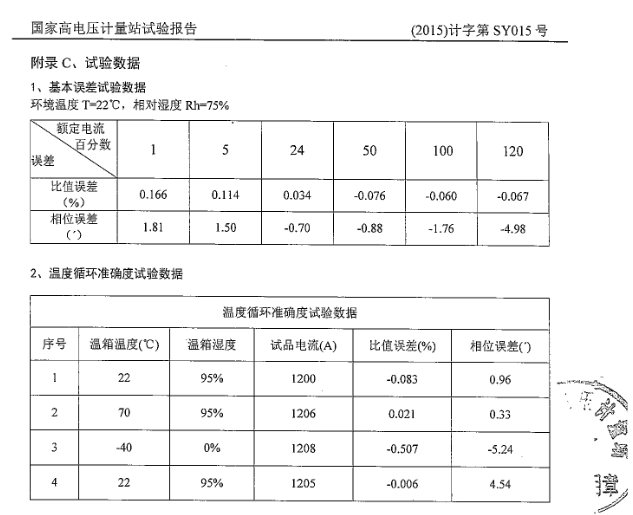

Figure 5 Third-party testing data (national high-voltage metering station)

Localization of key components

1. Preserving round fiber and preserving round fiber ring

The core component of the all-fiber current transformer is the circular fiber (ring) on the high-voltage side. This kind of fiber is a special polarization-maintaining fiber. The circular birefringence is introduced by rotating the axis of the fiber, and the high linear birefringence of the fiber itself forms an elliptical birefringence. When the rotation period is small enough, it has good circular polarization maintaining ability and is suitable for the application of fiber current mutual inductance. Due to the high internal stress, the polarization-maintaining fiber has a good ability to resist external interference and internal defects.

At present, almost all of the fiber-optic current transformer products in the domestic pilot network use imported rotating fibers, which have problems such as high unit prices, limited fiber lengths, and uncontrolled supply batches and delivery dates. YOFC is committed to promoting the research of optical fiber materials and packaging technology in optical transformers. It has invested heavily in the research of rotating optical fiber rods and drawing processes. It has also made considerable progress recently, overcoming polarization-maintaining fiber Two core problems of spinning and drawing. It is expected to realize the mass production capacity of Baoyuan sensing optical fiber as soon as possible, and plans to promote the engineering application of core components of current transformers produced nationwide.

Figure 6 Micrograph of 1/2 rotation period of rotating fiber prepared by YOFC

2. Polarization maintaining fiber for devices and gyroscopes, 1/4 glass plate photonic crystal polarization maintaining fiber

Figure 7 Polarization-maintaining fiber, polarization-maintaining cable and special-structure polarization-maintaining fiber

Device-type polarization-maintaining fiber-grinding cracking rate is much less than 1%

The component-type polarization-maintaining fiber has been monopolized by foreign companies for many years. The reason is that the panda-type polarization-maintaining fiber produced by domestic companies fails to solve the problem of grinding and cracking in the stress zone of the "panda eye".

Polarization maintaining fiber for fiber optic gyroscope-high polarization maintaining performance, excellent high and low temperature performance, low loss

Polarization maintaining fiber for fiber optic gyroscope has high polarization maintaining performance, excellent high and low temperature performance and low loss.

1/4 glass plate polarization-maintaining photonic crystal fiber
